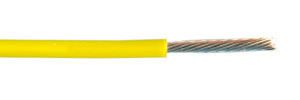

BS3G210 PTFE Single Core-High Temperature cable

These cables are manufactured to BS3G210 and operate up to 200°C or short term 250²C with silver plated conductors. (Nickel plated conductor versions to work up to 260°C are available to special order).

PTFE is a remarkable material. It is unaffected by most oils, fuels and fluids. The high temperature range makes it resistant to damage from heat sources such as soldering irons.

Other voltage ratings are available with many of the wires conforming to American MIL, VDE, DIN, BS, or Lloyd's standards.

Multi-core and screened or armoured versions can also be manufactured in many sizes and styles.

Technical Information

Voltage Working	Type A 300V	Test 2500V
	Type B 600V	Test 3400V
	Type C 1000V	Test 5000V
Temperature Range	Static -55°C to +200°C	Short Term +250°C
Bending Radius	Static 6 x cable diameter
Conductor material	Silver plated copper
Manufactured to BS3G210.

Technical Data

Size AWG	Stranding x mm	CSA mm²	Voltage Grade	Weight Kg/Km	O/D mm min - max
30	7/0.10	0.056	A	1.1	0.50-0.65
28	7/0.12	0.089	A	1.4	0.56-0.71
28	7/0.12	0.089	B	2.1	0.76-0.96
26	7/0.15	0.14	A	1.1	0.65-0.80
26	7/0.15	0.14	B	3.09	0.85-1.05
24	7/0.20	0.22	A	3.04	0.80-0.95
24	7/0.20	0.22	B	3.89	1.00-1.20
24	7/0.20	0.22	C	4.64	1.26-1.52
22	19/0.15	0.35	A	4.41	0.95-1.10
22	19/0.15	0.35	B	5.44	1.15-1.35
22	19/0.15	0.35	C	6.43	1.41-1.67
20	19/0.20	0.61	A	7.19	1.20-1.35
20	19/0.20	0.61	B	8.43	1.40-1.60
20	19/0.20	0.61	C	9.08	1.66-1.92
18	19/0.25	0.96	B	12.1	1.65-1.85
18	19/0.25	0.96	C	14.3	1.91-2.17
16	19/0.30	1.23	C	16.5	2.16-2.46
14	19/0.36	1.94	C	23.9	2.34-2.74
12	19/0.45	3.08	C	38.5	2.91-3.31
10	37/0.40	4.65	C	56.0	3.46-3.86
